Shenzhen Guangming · 600 kW C&I Rooftop PV
UAV mapping + 3D rendering + full drawing package · 20 days survey-to-issue
600 kW C&I Rooftop PV Design with 3D Rendering, Shenzhen Guangming
A 600 kWp C&I rooftop PV project for a Guangming client. We delivered the full design package — UAV aerial mapping, photorealistic 3D rendering, shading analysis, cable-routing optimization and a complete CAD drawing set — within 20 days from site survey to issued drawings.

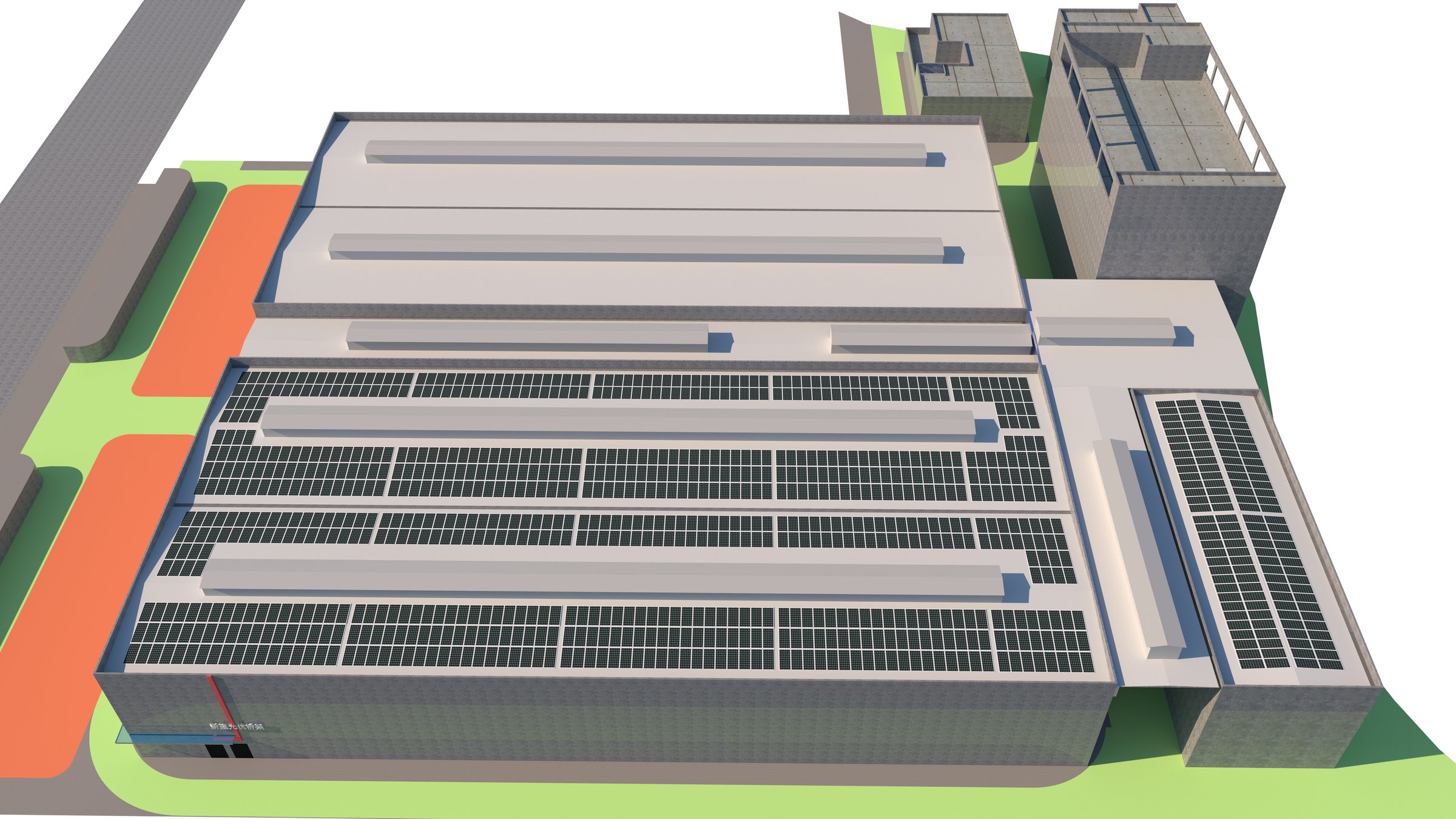

3D Effect Rendering
UAV aerial mapping + 3D modeling — true-to-site preview of the finished PV installation

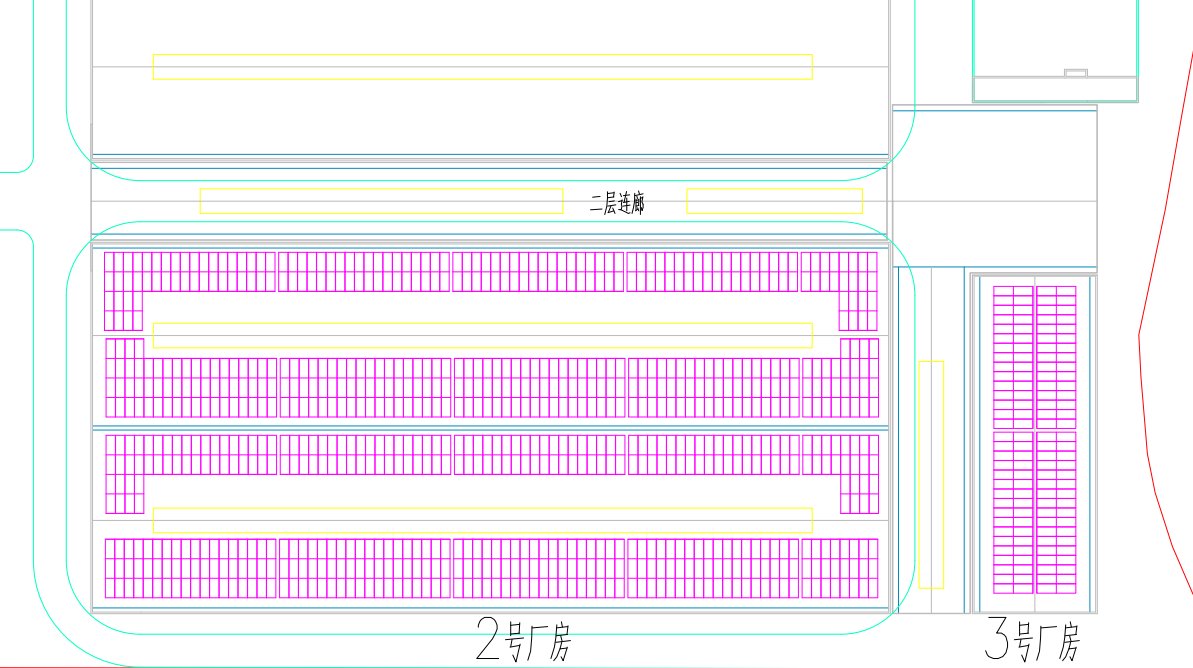

Design Drawings
Module layout, cable routing, electrical interconnection and structural details
Core Highlights
UAV Aerial Mapping · True-to-Site 3D Rendering
Drone aerial photography is used to build an accurate 3D model of the rooftop, which is then rendered to show the finished PV installation effect — giving the client a clear preview before construction starts.
Precise Shading Analysis · Optimized Cable Routing
Detailed shading analysis on the 3D model plus optimized DC/AC cable routing minimize material usage and reduce overall plant construction cost.
Fast Response · Accurate Drawing Output
From site survey to issued drawings in 20 days. The deliverable package covers module layout, cable routing, electrical interconnection and structural details — ready for procurement and construction.
Delivery Capability
Phase-by-phase deliverables and timeline
| Phase | Deliverable | Duration |
|---|---|---|
| Site Survey | Rooftop conditions · Cable routing · Power-room configuration | 1 day |
| 3D Rendering | PV layout 3D render · Cable routing diagram | 4 days |
| Design Drawings | PV module layout · Cable routing · Electrical interconnection · Structural details | 15 days |
