Mono-Crystalline PV Modules
JA Solar bifacial high-efficiency modules · 650 Wp ~ 670 Wp full power range.
JA SOLAR · BIFACIAL N-TYPE MODULE

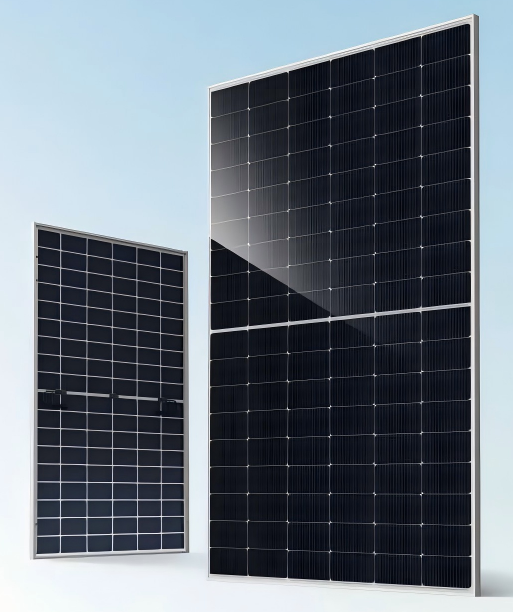

Mono-Crystalline PV Module
Built on JA Solar bifacial N-type cell technology. 5 power tiers (650 Wp ~ 670 Wp), up to 24.80 % conversion efficiency and 85 ± 5 % bifaciality. Suited for distributed C&I rooftops, ground stations and large-scale centralized PV projects.
Electrical Performance (STC)
| Parameter | 650 Wp | 655 Wp | 660 Wp | 665 Wp | 670 Wp |
|---|---|---|---|---|---|
| Max Power Pmax | 650Wp | 655Wp | 660Wp | 665Wp | 670Wp |
| Voltage at Pmax (Vmp) | 42.57V | 42.70V | 42.78V | 42.85V | 42.92V |
| Current at Pmax (Imp) | 15.27A | 15.34A | 15.43A | 15.52A | 15.61A |
| Open-Circuit Voltage (Voc) | 50.26V | 50.44V | 50.50V | 50.55V | 50.60V |
| Short-Circuit Current (Isc) | 15.98A | 16.04A | 16.14A | 16.24A | 16.34A |
| Module Efficiency | 24.06% | 24.25% | 24.43% | 24.62% | 24.80% |
General Parameters
- Bifaciality85 ± 5%
- Power Tolerance0 ~ +3 %
- Pmax Temp Coefficient-0.26 %/°C
- Voc Temp Coefficient-0.24 %/°C
- Isc Temp Coefficient0.046 %/°C
Certifications
IEC 61215IEC 61730TÜVVDECECSA
Flexible PV Modules
Lightweight and bendable — ideal for non-load-bearing roofs and vehicles.

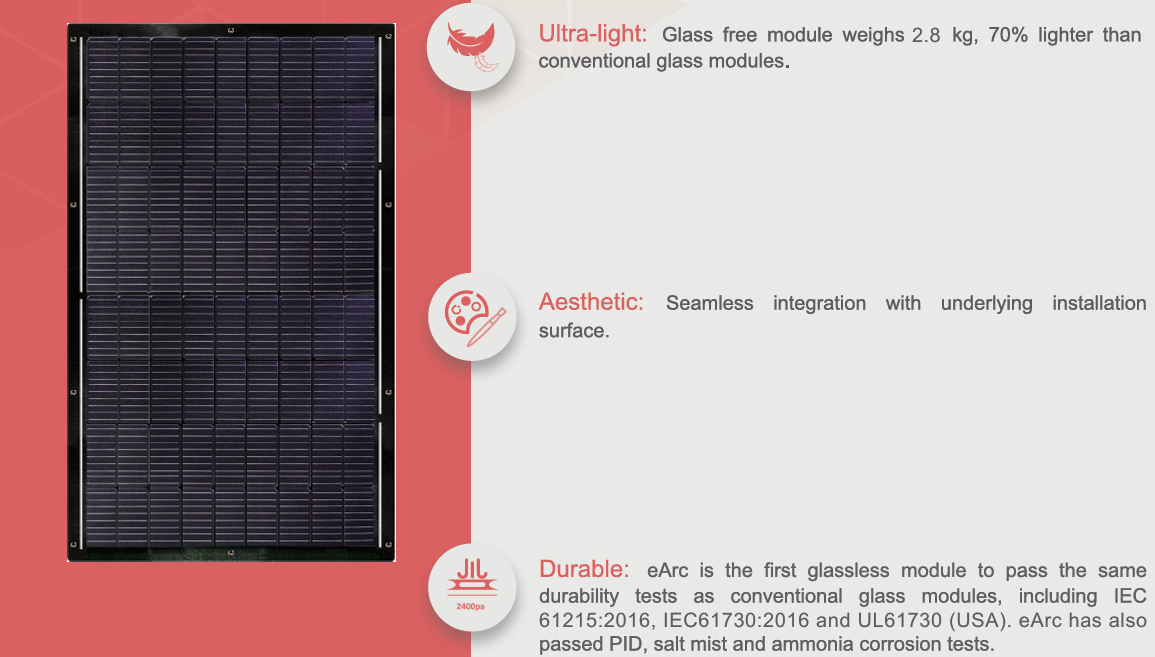

Flexible Module 200 W

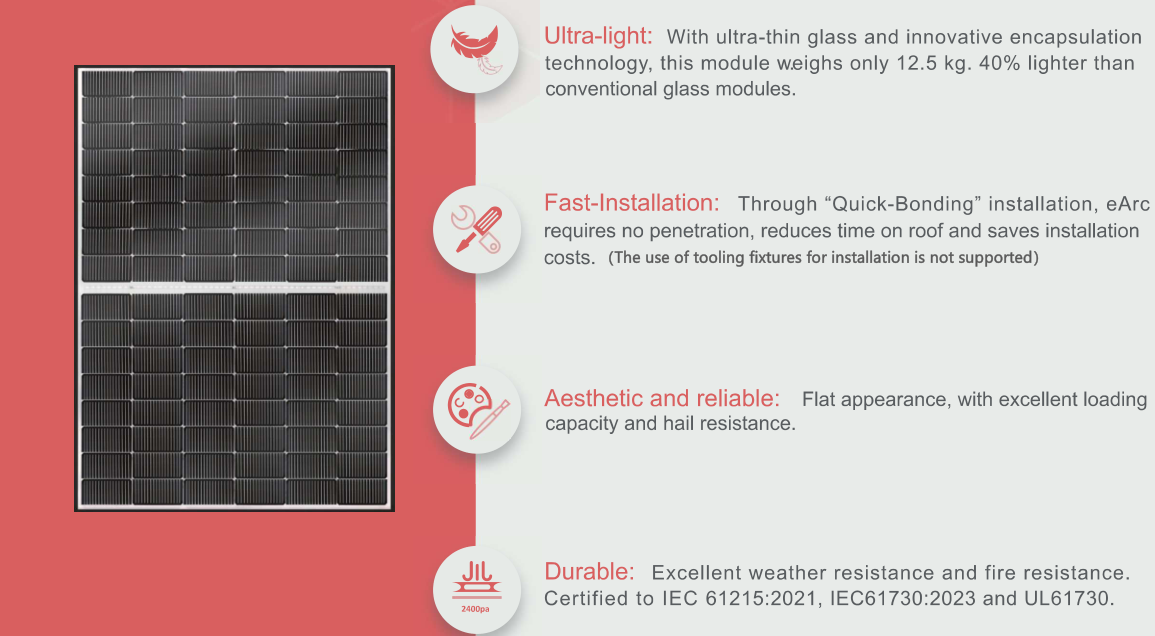

Flexible Module 450 W

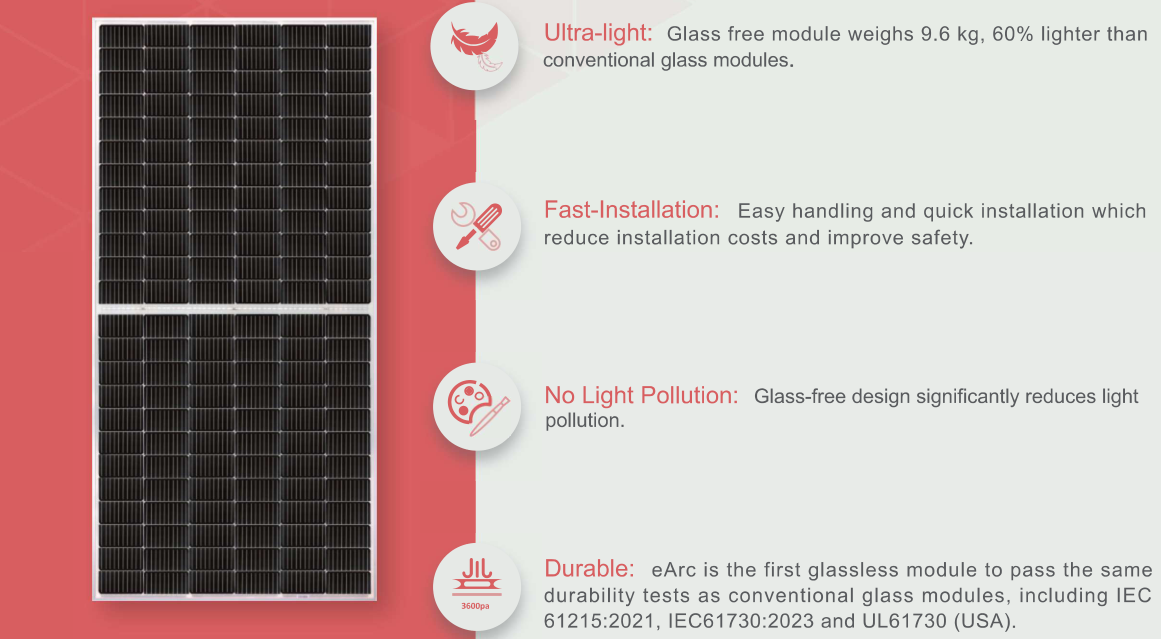

Flexible Module 520 W
Custom PV Products
Custom PV module sizes plus extended products like solar backpacks and solar power banks, all built to your spec.
Solar Power Banks
Portable outdoor power · 20 W / 30 W / 100 W

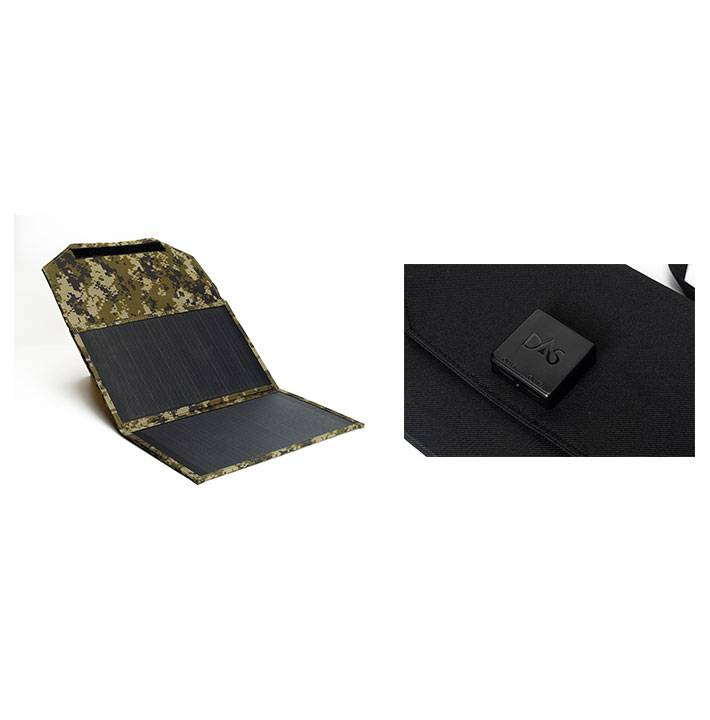

Solar Power Bank 20 W

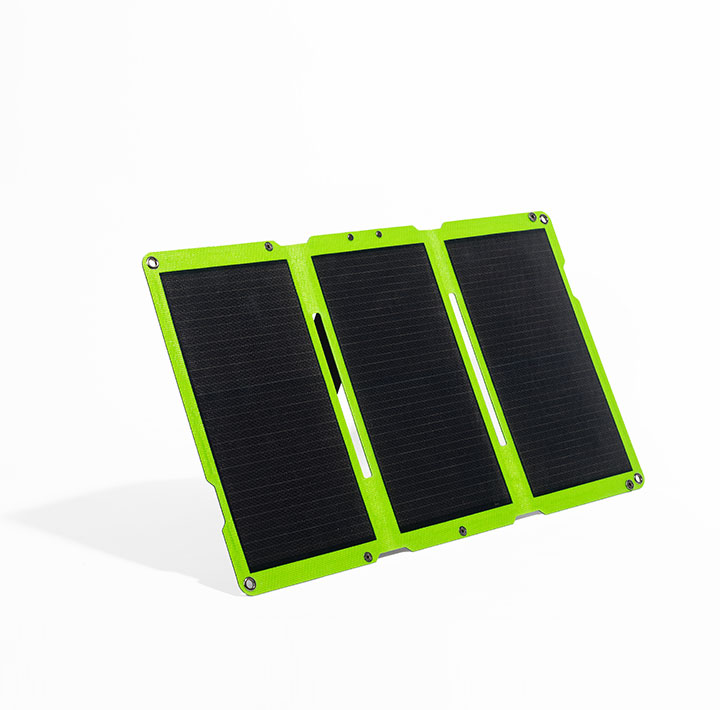

Solar Power Bank 30 W

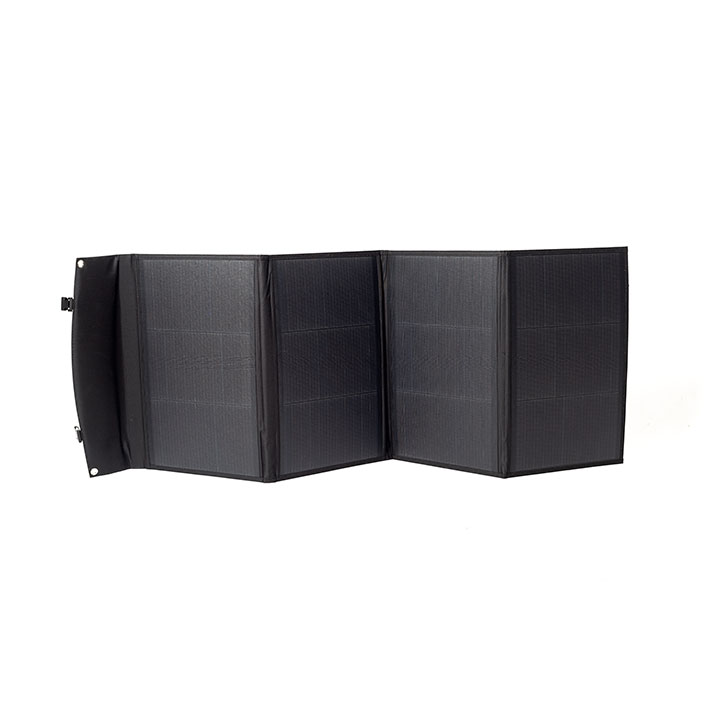

Solar Power Bank 100 W

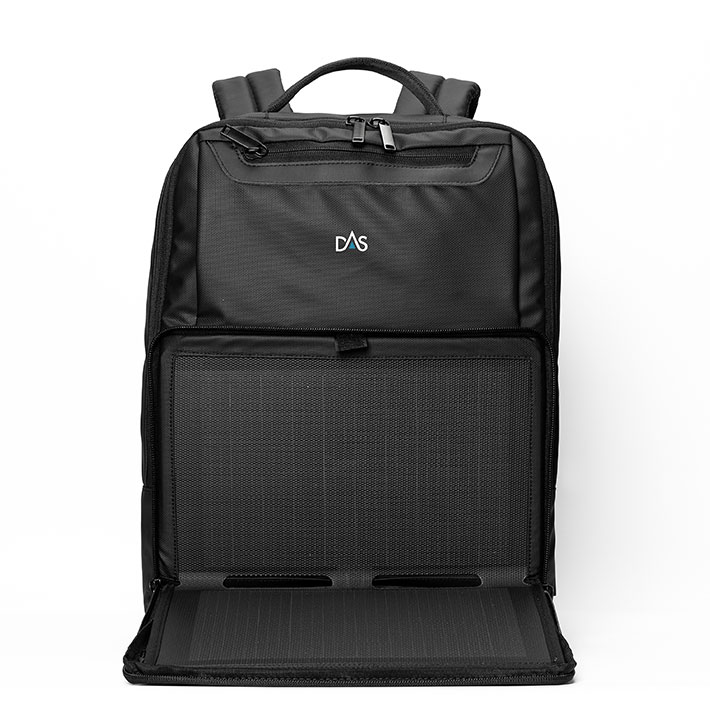

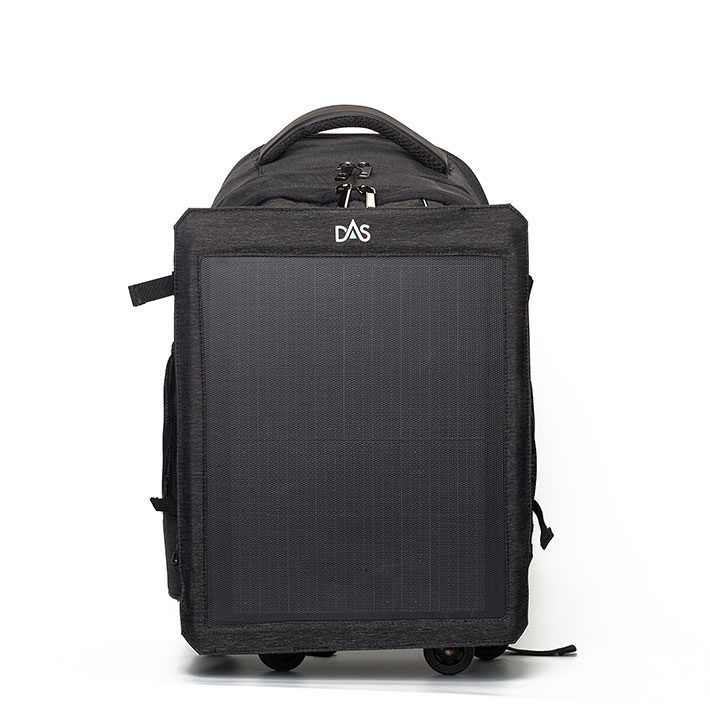

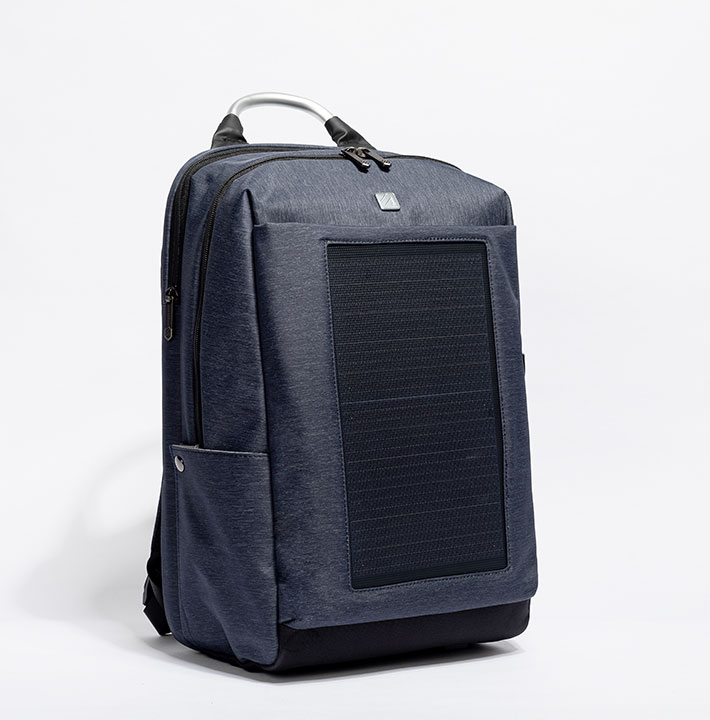

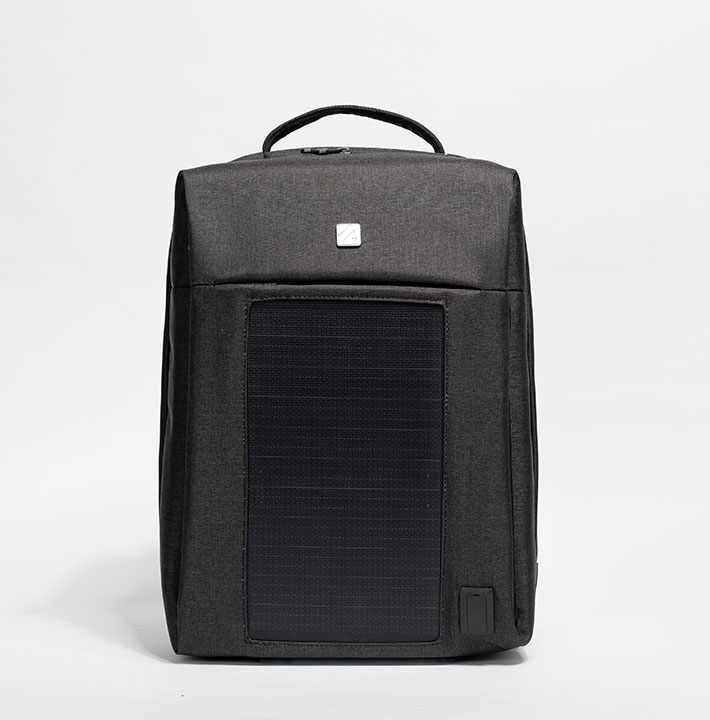

Solar Backpacks
Outdoor emergency charging · 10 W / 20 W series
Solar Backpack DAS-BA-10-001
Solar Backpack DAS-BA-10-002
Solar Backpack DAS-BA-20-004
Solar Backpack DAS-BA-20-005

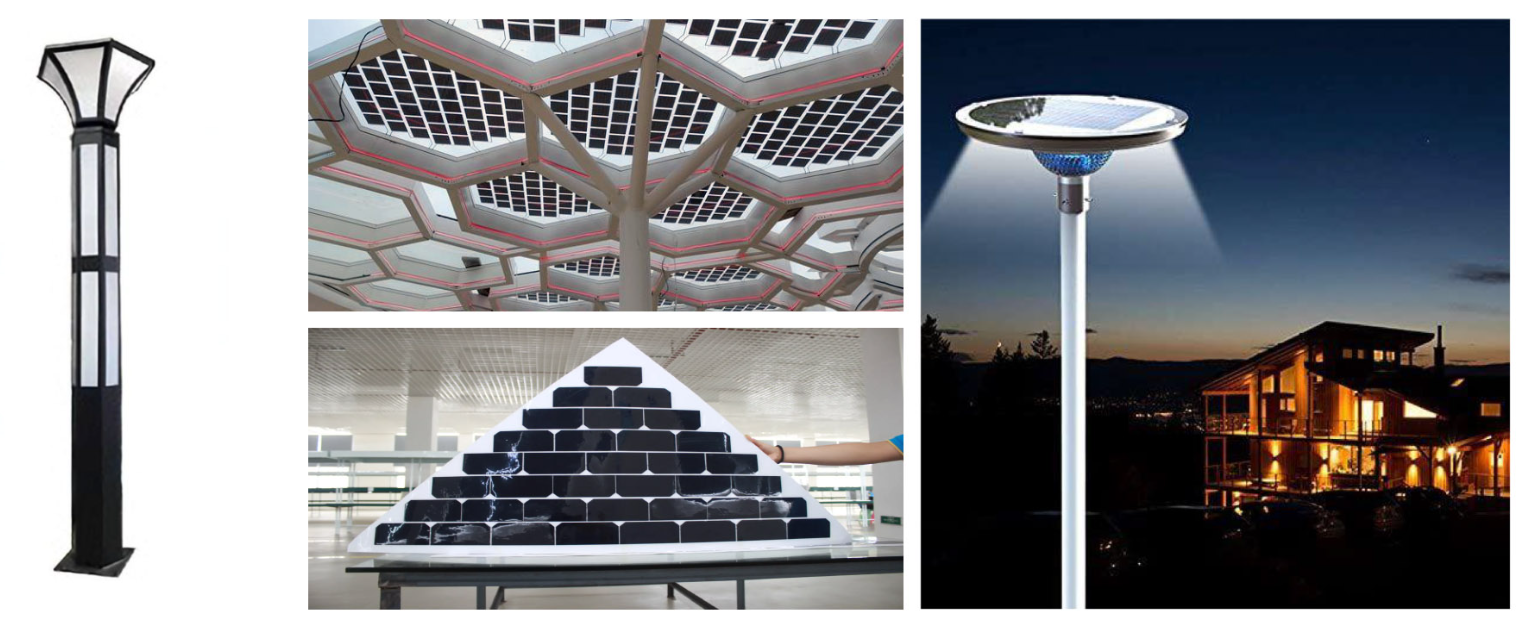

Custom-Size PV Modules
Non-standard rooftops / artistic integration · custom dimensions
Custom-Size PV Module
