PV Inverters
Full coverage from residential and distributed to large-scale ground / floating PV — efficient, smart and reliable, maximizing your investment value.

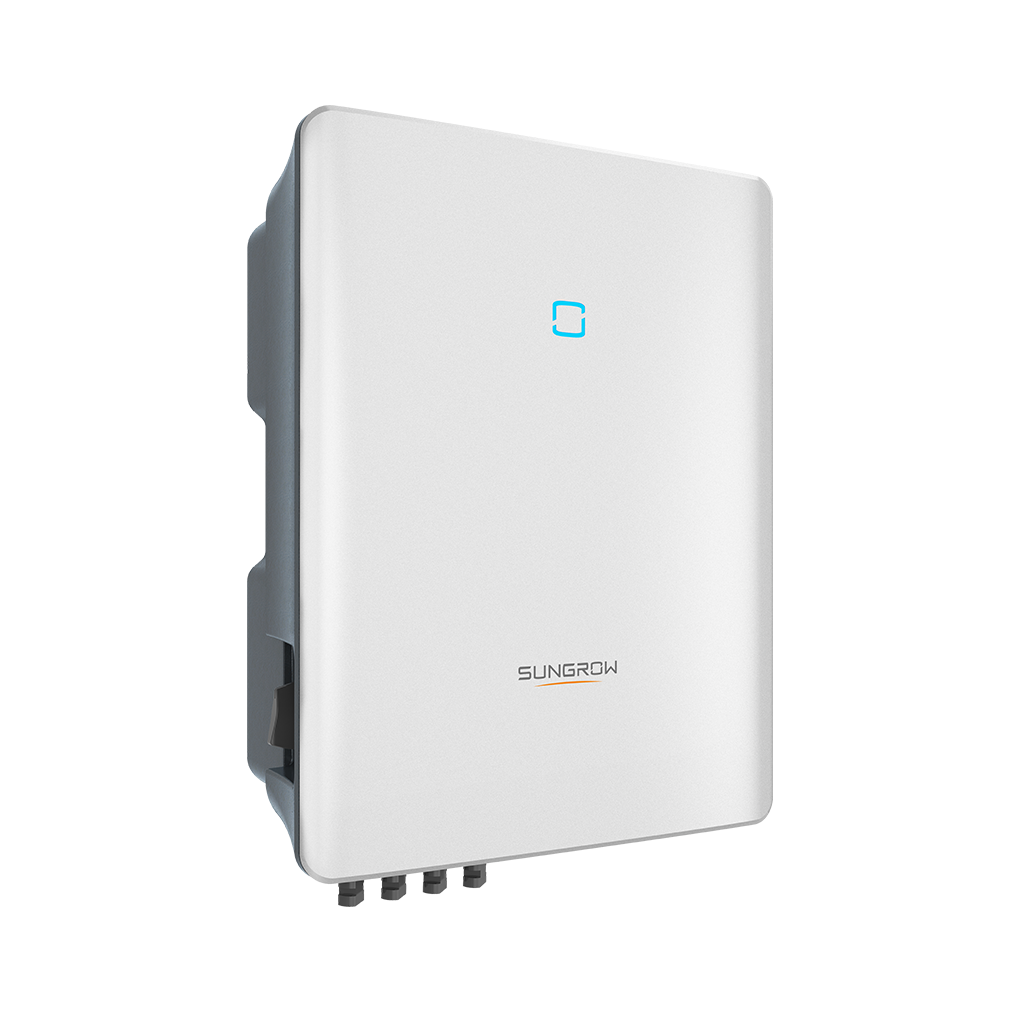

Power: 6 ~ 20 kW
PV Inverter

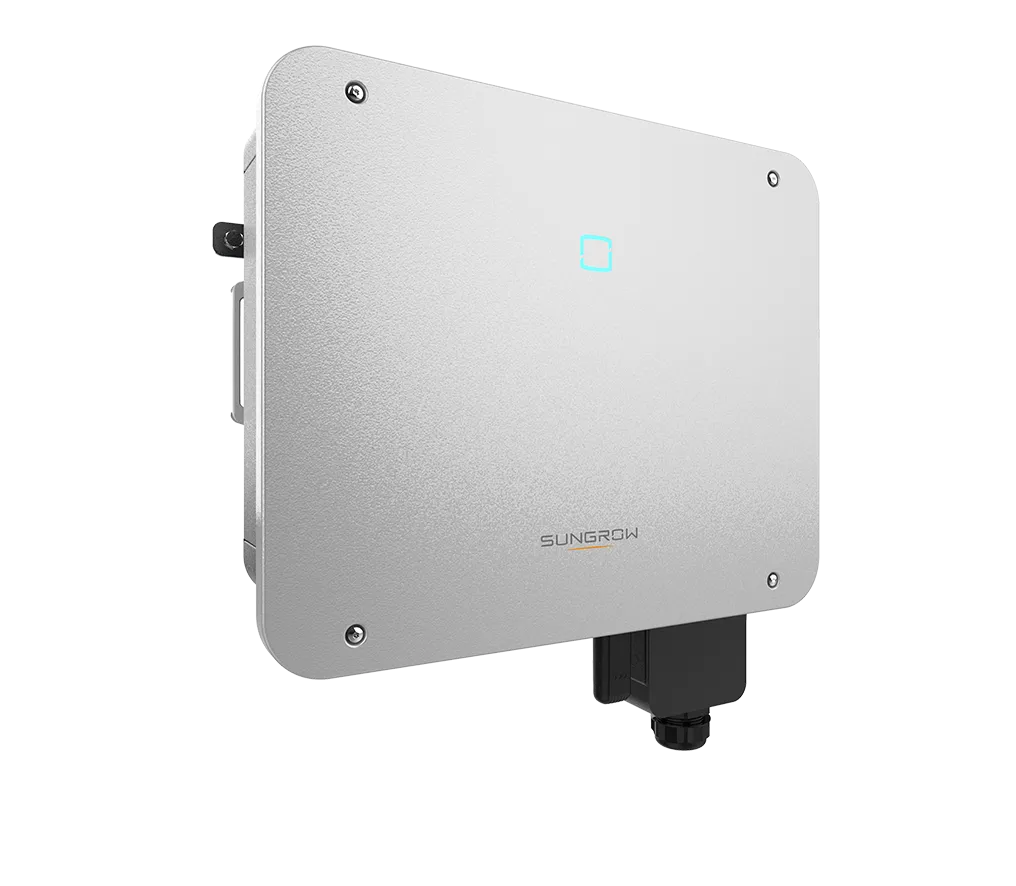

Power: 33 ~ 50 kW
PV Inverter
Power: 60 ~ 110 kW
PV Inverter
PV+Storage Hybrid Inverter
Integrated PV grid-tie and storage charge/discharge control — purpose-built for C&I PV+storage systems.

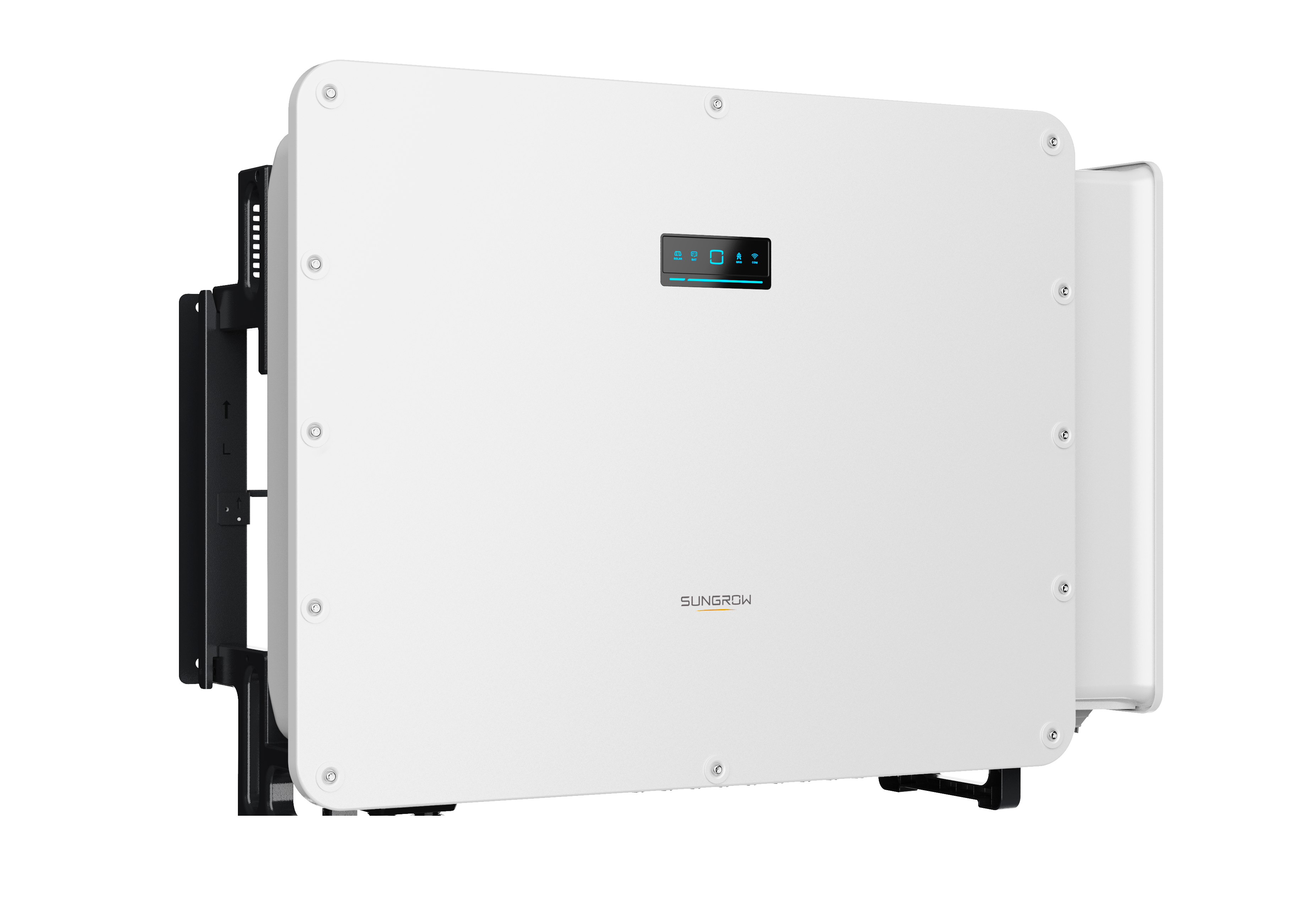

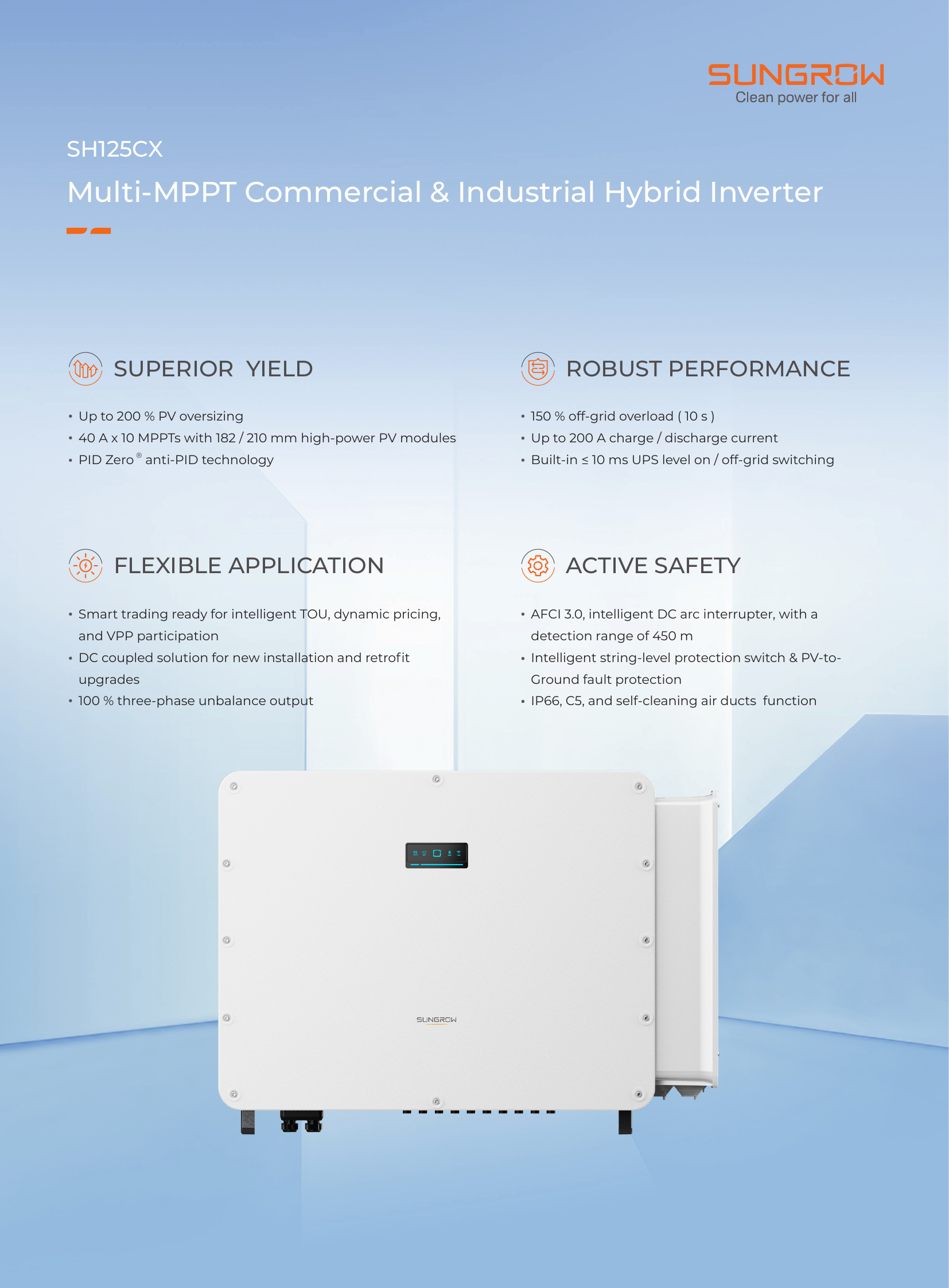

SH125CX · Multi-MPPT Commercial & Industrial Hybrid Inverter
PV+Storage Hybrid Inverter SH125CX
A new-generation C&I hybrid inverter combining PV grid-tie and storage charge/discharge control. Rated 125 kW, peak efficiency 98.6%, supporting 200% PV oversizing and 10 MPPT inputs — a turnkey high-yield, high-safety, high-reliability solution for C&I PV+storage projects.
SUPERIOR YIELD
Superior Yield
- ●Up to 200% PV module oversizing
- ●40 A × 10-route MPPT, compatible with 182 / 210 mm high-power modules
- ●PID Zero® anti-PID degradation technology
ROBUST PERFORMANCE
Robust Performance
- ●150% off-grid overload (10 seconds)
- ●Charge / discharge current up to 200 A
- ●Built-in ≤10 ms UPS-grade on/off-grid switching
FLEXIBLE APPLICATION
Flexible Application
- ●Smart energy trading: TOU / dynamic pricing / VPP integration
- ●DC-coupled solution for new-build and retrofit
- ●100% three-phase unbalanced output
ACTIVE SAFETY
Active Safety
- ●AFCI 3.0 smart DC arc detection, 450 m range
- ●String-level smart protection switch + PV-to-ground fault protection
- ●IP66 protection · C5 anti-corrosion · self-cleaning air duct
Key Specifications
- Max PV Input Power250 kWp
- Rated Output Power125 kW
- Max / Euro Efficiency98.6% / 98.3%
- Number of MPPTs10
- Battery Voltage Range129 ~ 880 V
- Protection RatingIP66
- Operating Temperature-30°C ~ +60°C
- Weight≤ 128 kg
Certifications
IEC 62109-1/-2IEC 62477-1EN 55011VDE-AR-N 4105VDE-AR-N 4110CEI 0-16 / 0-21EN 50549
